Ecomix Multysorb filters FILT-MIX 3900 (flow rate 3,300 – 3,900 lit/h)

FILT- MIX series of multifunctional filters for removing iron, water hardness, manganese, ammonia and organic matter

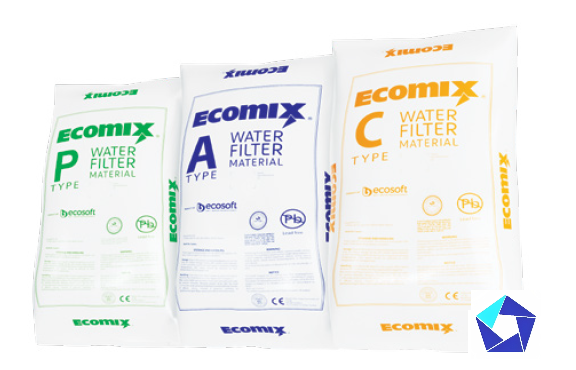

ECOMIX is a granular filtration filling that effectively removes organic matter, hardness, iron, manganese and ammonia at a wide range of water pH without the need to dose oxidizing agents.

Its homogeneous mixture of five highly efficient ionic mass and absorption materials (natural and synthetic.



Flow	3,300 – 3,900 liters/h
Connection	1” – 1” – ¾”
Mass volume	100
Salt consumption/regeneration	10 – 16 kg
Pressure	2 – 6 bar
Power supply	230V, 50Hz
Electricity consumption	30 watts
Dimensions	900x500x1900



Technical characteristics of ECOMIX filtration mass:



Maximum operating temperature – 40 °C

Service flow – 20-25 m/h

Rinse feedback flow – 10-15 m/h

Salt water flow rate (slow flushing) – 3 – 5 m/h

Minimum layer height – 500 mm

Recommended layer height – 800 mm

Salt consumption – 100 g/L media

Salt water concentration – 8-10%

Water consumption per regeneration – below 10 L/L

Ion exchange capacity – 30 g CaCO3/L



Feed water specification:

Hardness – 15 mEq/L

Iron – 15 mg/L

Manganese – 3 mg/L

Chemical oxygen consumption – 20 mg O₂/L

Ammonia – 4 mg/L

pH – 5-9

Maximum TDS – 4000 mg/L
